Commercial Car Lift Installation: Concrete Depth & Space Requirements
Let’s be honest: nobody gets excited about concrete. You want to see your new lifts installed and your bays full of cars. But here’s the cold, hard truth: installing a heavy-duty lift on a weak floor is like building a skyscraper on a swamp. It’s an expensive nightmare waiting to happen.
Before that freight truck drops off your new equipment, you’ve got to do your homework. If your concrete fails, your anchors pull out, your warranty is voided instantly, and you’re looking at a massive safety liability.
In this guide, we’re cutting through the technical jargon to tell you exactly what your shop floor needs to handle a commercial lift safely.

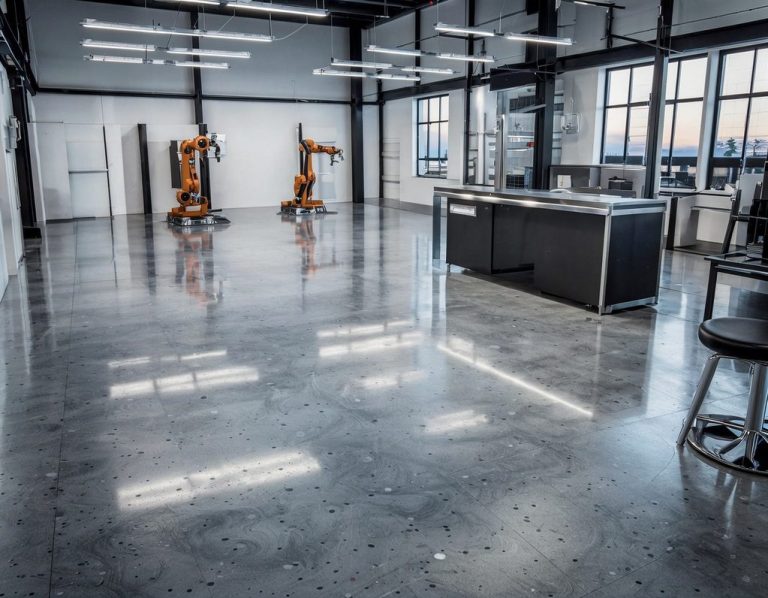

1. The Foundation: It’s All About Depth and Strength
Don't Guess the Depth
For a standard 10,000 lbs 2-post lift, the absolute bare minimum is 4 to 6 inches. If you’re planning on a heavy-duty bay for 12,000 lbs+ diesel trucks, don’t even think about it without 8 inches of reinforced concrete.
The 3,000 PSI Rule
The concrete needs to be hard enough to "grip" the anchors. Industry standards require a minimum of 3,000 PSI.
Pro Tip: If you’ve just moved into an old building and the floor looks questionable, get a core drill test. It’ll cost you about $150, but it’s a lot cheaper than having a lift tip over because you assumed the floor was solid. If your slab is too thin, you’ll need to cut it out and pour a fresh "island" of reinforced concrete—it's a hassle, but it's the only way to do it right.
Your lift’s safety relies 100% on the floor anchors. If the concrete is too thin or "soft," those anchors won't hold under the weight of a 10,000 lb truck.
2. Quick Specs Cheat Sheet

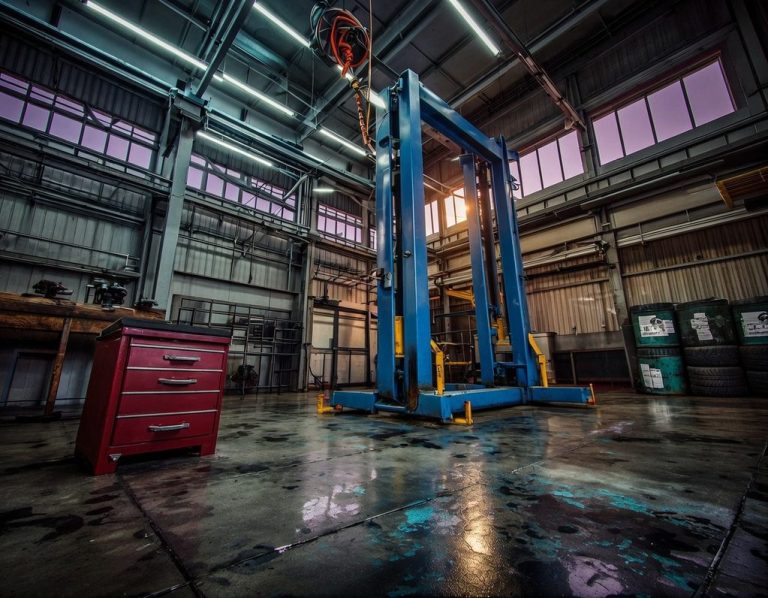

3. Ceiling Height: Don't Forget the Roof
There is nothing more frustrating than getting a car up on the lift only to realize you can’t go high enough to work comfortably because the roof is too low.
The 12-Foot Standard: For most professional "clear-floor" lifts (where the cables run overhead), you need 12 feet of clearance.
The "Sprinter" Rule: If your shop services high-roof vans or commercial fleets, you really need to aim for 14 feet. Anything less and your tallest mechanics will be working hunched over all day.
Give 'Em Room: Make sure you have at least 2 to 3 feet of "walk-around" space between the lift columns and the walls. A cramped bay is a slow bay.

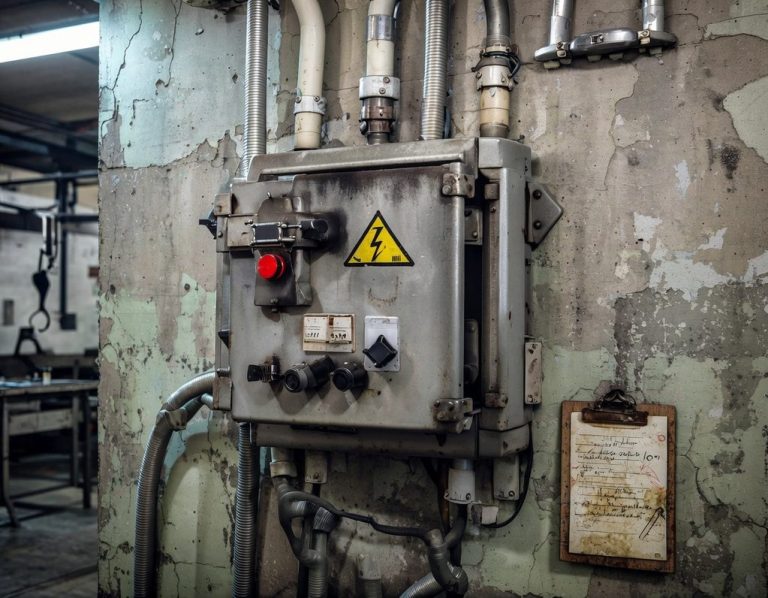

4. Powering the Beast
Commercial lifts aren't like your home power tools. They are "juice-hungry" machines that need a stable, heavy-duty electrical setup.
The Standard Setup
Most professional 2-post and 4-post lifts (typically running 2.0 to 3.0 horsepower motors) require a 220V, single-phase power supply. You absolutely cannot run these off a standard 110V wall outlet.
Dedicated Breakers and Wire Gauge
Do not try to share a circuit with your rotary air compressor or your shop welder. Each lift requires its own dedicated 30-Amp circuit breaker.
Furthermore, wire thickness matters. Your electrician should use 10 AWG copper wire at a minimum. If your electrical panel is on the opposite side of a massive shop (meaning a long cable run of over 50 feet), they will likely need to step up to thicker 8 AWG wire to prevent a "voltage drop." A voltage drop means the motor doesn't get enough juice when under load, forcing it to work twice as hard and cutting its lifespan in half.
Hardwiring vs. Twist-Lock Plugs You generally have two options for the final connection:
- Hardwiring: Many commercial shops prefer to hardwire the motor directly into an industrial disconnect switch on the wall. This offers maximum safety and strict adherence to local commercial fire codes.
- Twist-Lock Receptacles: Alternatively, you can use a heavy-duty twist-lock plug (like an L6-30). This prevents the power cord from accidentally vibrating loose while a 10,000 lb vehicle is suspended in the air.
